Key Features

• Complies with IEC61850-3/IEEE1613 for power substations & EN50121-4 for railway applications
• Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy and GOOSE Message
• Zero Packet Loss pass by GOOSE Message
• IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
• Supports port-based VLAN, IEEE 802.1Q VLAN Tagging and GVRP
• IEEE 802.1p QoS with 4 priority queues
• IEEE 802.1x Access Control to improve network security
• Bandwidth Rate Control
• Per-port programmable MAC address locking
• Up to 24 Static Secure MAC addresses per port
• Port Mirroring helps supervisors to monitor the network
• NTP time synchronization service
• DHCP Client/Server
• RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
• 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
• Full wire-speed forwarding rate
• -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

Package Contents

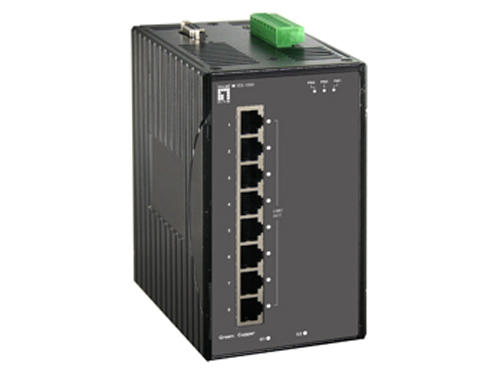

• IES-1090
• Resource CD (User Manual, Utility)
• Quick Installation Guide
